SIRTAKI

Automated hair combing testing

SIRTAKI Automated hair combing machine

Features

shine gloss color test claims research hair care polarization luster Samba Hair System Diffuse Shine Chroma logo-2 combing cylinder

AUTOMATIC FINE HAIR COMBING

Rotated motorized combing with standard combs or brushes

RUMBA polarization modulation angle orientation alignment hair frizz curl curly static messy principle infrared lab setup in-vivo in-vitro logo High resolution fast

ADJUSTABLE RPM

Change your combing frequency from 1 to 2.3 Hz

BACK-LIGHTED FIBER TRAYS

Illuminated tray for broken fibers and fibers visualization

Bolero Volume frizz hair care claims bulk fly-away full rotation transmission calibration logo 3d easy

PLUG & PLAY

No special installation is needed - easy cabling and the system is ready to go

Overview

When designing a hair conditioning product or styling device, you need to know how well it is preventing hair breakage from repeated combing or brushing. Or when you formulate any product designed to improve specific aesthetic or mechanical properties (shine, friction, smoothness, frizz, etc.), you want to understand how repeated combing will affect the hair properties.

In any of those cases, an automated hair combing test will be able to help you assess and quantify hair breakage, abrasion or product resilience for your hair care claims.

At BOSSA NOVA Vision, we developed the SIRTAKI – an automated combing rig – to provide hair product manufacturers with a state-of-the art device to simplify the measurement process.

The SIRTAKI combing machine provides an adjustable combing rate – from 1 to 2.3 Hz with a steady, even torque – for up to 6 swatches at a time. It can be left to run for hours on its own without supervision. A back-lit tray under the combing mechanism can be slid open to identify and analyze the collected broken hair fibers.

Principle

The instrument is operated using a simple interface on the controller on the side of the system. The user can start or stop the combing rotation at will, and adjust the rotation speed from 10 to 35 rpm. The equivalent combing frequency can then range from 40 to 140 combing per minute. An emergency STOP button is present (in red) to stop the combing in case of a hair swatch being stuck or tangled. A RPM (Rotation Per Minute) indicator displays the speed of the combing rotation.

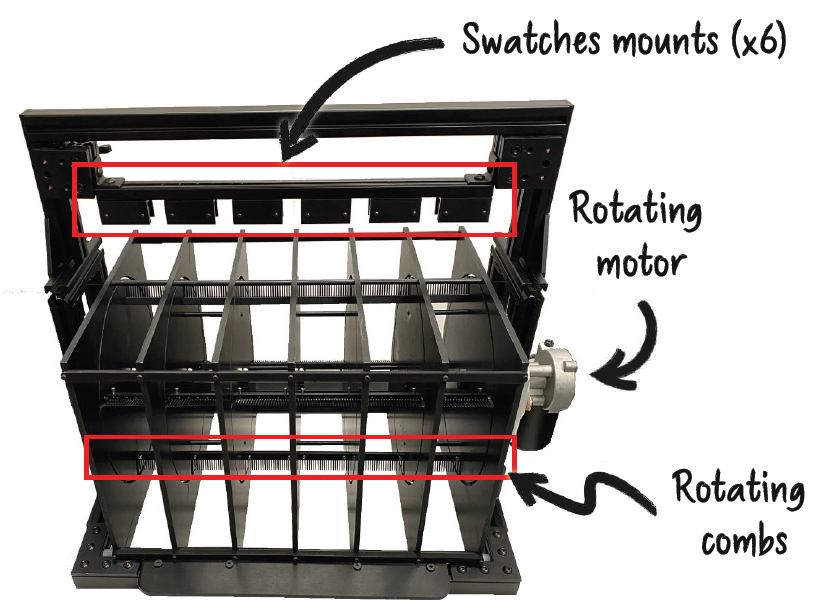

Each slot is fitted with up to 4 evenly spaced and easily replaced combs. The swatch mounts are attached to a height-adjustable bar for maximum adaptability. Hair swatches can be easily removed and attached with the thumb screws mechanisms. We can also provide brushes specifically designed for the SIRTAKI. Other combing or brushing apparatus can be adapted on-demand.

Automated SIRTAKI

The SIRTAKI can come with an automated hair fiber counting option – instead of manual – in which case, the detection and counting of broken hair  fibers is done automatically through an imaging system that periodically inspect the trays.

A software developed by BOSSA NOVA Vision will then control the tray system collecting the broken fibers as well as the camera inspecting them. The user has the possibility to decide the frequency at which he wants the trays to be inspected so that a time evolution of the breakage rate of each individual hair swatch can be measured.

automated hair combing software 1
Automated hair combing software 2

Specifications

GENERAL SPECIFICATIONS
Camera
Color Camera 12 bits
Resolution
2,464 x 2,056 pixels
Focus
adjustable up to 3 meters
Illumination
Pulsed White Led
Software
TANGO

Windows 10
Measurement time
1 second for a single accumulation
Calibration
Factory calibrated
Size
9" x 8.5" x 8.5 "
(230mm x 220mm x 220mm)
Power
110/200 VAC, 50/60 Hz
HAIR SAMPLE SPECIFICATIONS
Hair characteristics
Any type / shape / color
In-vivo or vitro
DATA
Data saved
Raw images (12 bits)
Processed images (32 or 34 bits)
Data export
Images export (png)
Excel for numerical data

Resources

Scientific publications​
