SHUFFLE

Multi-tools platform for hair testing
Volume - Frizz - Motion

Shuffle

Features

MULTIPLE
ATTACHMENTS

Several attachments can be used for different type of analysis​

HUMIDITY BOX INTEGRATION

Can fit inside the Bossa Nova Vision Humidity chamber​

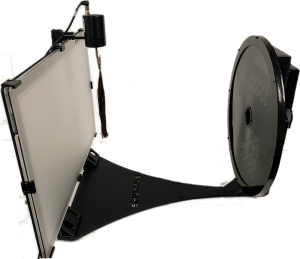

FOLDABLE SETUP

The system can be easily stored and deployed thanks to its foldable design

Bolero Volume frizz hair care claims bulk fly-away full rotation transmission calibration logo 3d easy

PLUG & PLAY

No special installation is needed - easy cabling and the system is ready to go

Overview

One of our aim at BOSSA NOVA Vision was to create an instrument that can accommodate a wide range of measurement capabilities in a package that is easy to use and easy to stow away.

The result is the Shuffle.

Crammed with years of optical R&D experience and feedback from cosmetic testers, the Shuffle consists of a collapsible frame that can be fitted with various attachments, allowing the user to measure a wide range of visual parameters using a single system. Those parameters includes :

  • hair volume
  • hair frizz
  • hair motion

Laboratories looking to expand their research and cosmetic testing capabilities without breaking the bank or cluttering their space with bulky equipment now have a solution, a cosmetic Swiss-army knife.

As its core, the SHUFFLE is an imaging system dedicated to quickly and efficiently discriminate fly-away/frizz fibers from the bulk of hair swatches on an image using light transmission variations to evaluate hair density. Several attachments are available for a wide range of analysis.

The current attachments available are listed below :

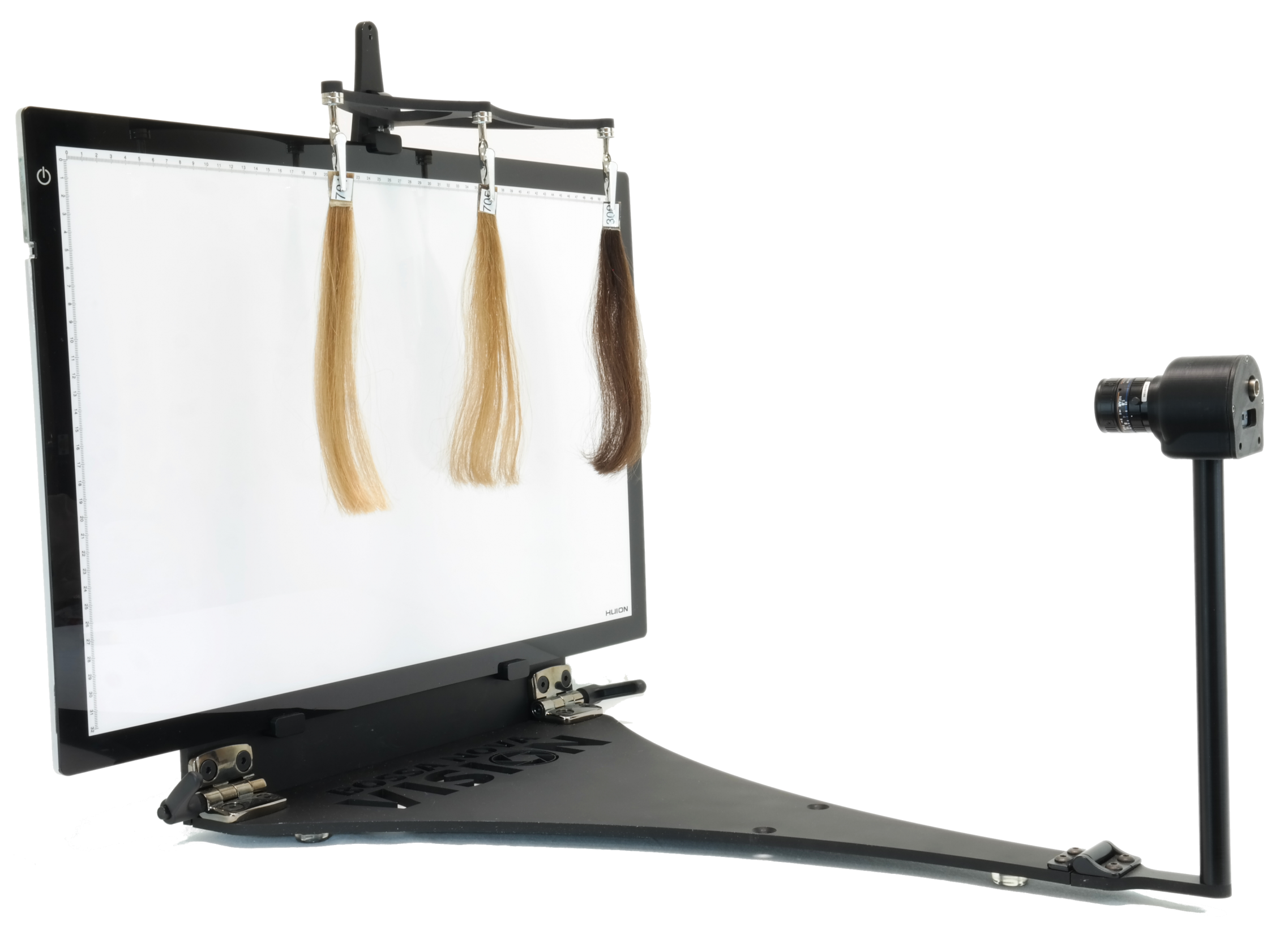

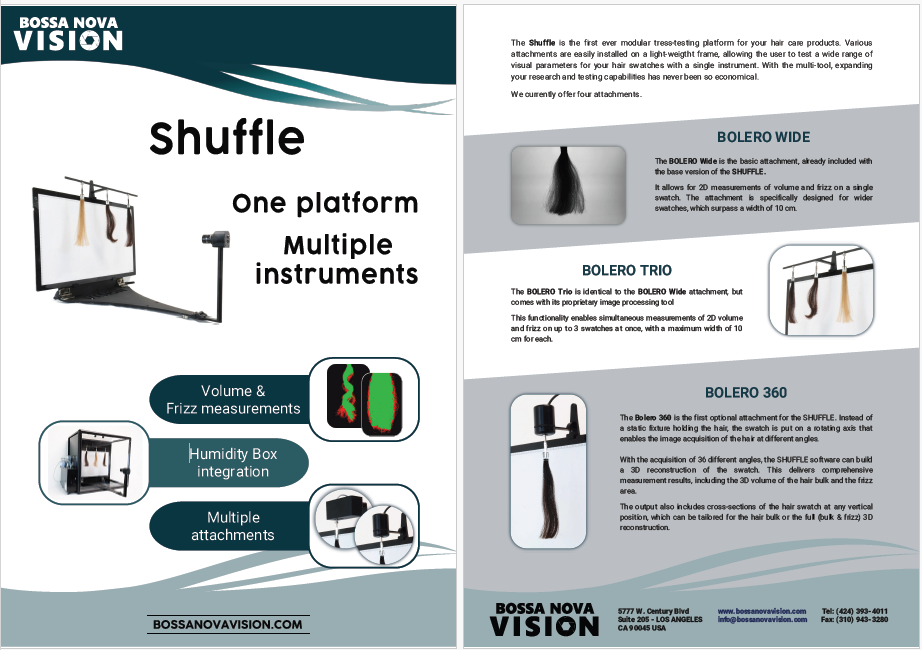

TRIO / WIDE (default)

For 2D hair volume and frizz

This attachment can hold three hair swatches at the same time and enables simultaneous measurement of 2D bulk and fly-away-frizz on up to three tresses or one large tress, including time-lapse capability.

hair volume

BOLERO 360

For 3D hair volume and frizz

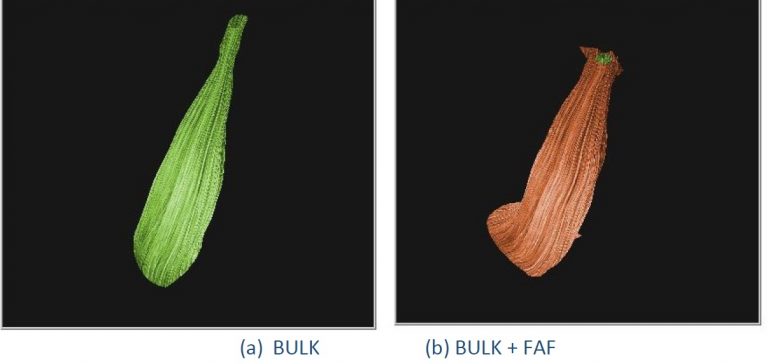

This attachment consists of a software-controlled motor synchronized with the camera to image the entirety of a hair tress from 36 angles, reconstructing its shape at every angle, and providing a 3D reconstruction

hair frizz

HULA / HOP

For hair motion testing

This attachment consists of a calibrated motor which swings a tress back and forth, allowing the visual analysis of hair movement and hair perturbation, including time-lapse capabilities.

hair motion

Principle

Using uniform back-light illumination, we can measure the transmission of the light through the hair swatch with a standard black and white image of the sample. For each pixel of the image, we measure the light transmitted.

If the transmission :

  • is inferior to a defined threshold, this corresponds to a high-density area and we can define the pixel as part of the bulk
  • is higher than the defined threshold, this is a low-density area and we can define the pixel as part of the fly-away / frizz
Bolero Volume frizz hair care claims bulk fly-away full rotation transmission

Using this analysis, and other standard image processing techniques, we are able to measure the following parameters :

TRIO / WIDE (default)

With this attachment, you can extract information about the change in hair volume and hair frizz of your swatches from a 2D analysis of up to 3 swatches simultaneously. Numerical data about the volume / frizz can be measured over the whole swatch or along the swatch vertical axis

BOLERO 360

This attachment allows for a similar frizz / volume analysis as the TRIO / WIDE attachment but uses a 3D reconstruction analysis instead of a simple 2D image analysis.

More details on the BOLERO page

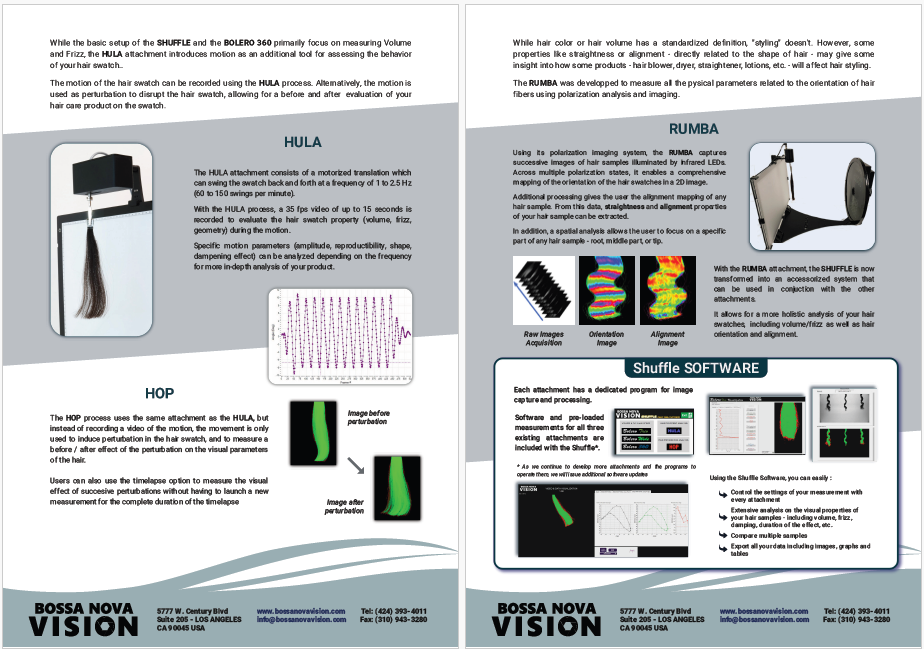

HULA / HOP

With motion, we can analyze similar parameters while the hair swatch is moving.

With the HULA, you can measure changes in volume and frizz during the movement of a hair swatch, but also the angle of the hair swatch axis and the damping effect. All those parameters can be measured with different speeds as the motor can move with a frequency between 0.7 and 2.5 Hz

With the HOP, you can compare the hair swatch characteristics (volume and frizz) before and after a user-defined perturbation (speed and duration)

Specifications

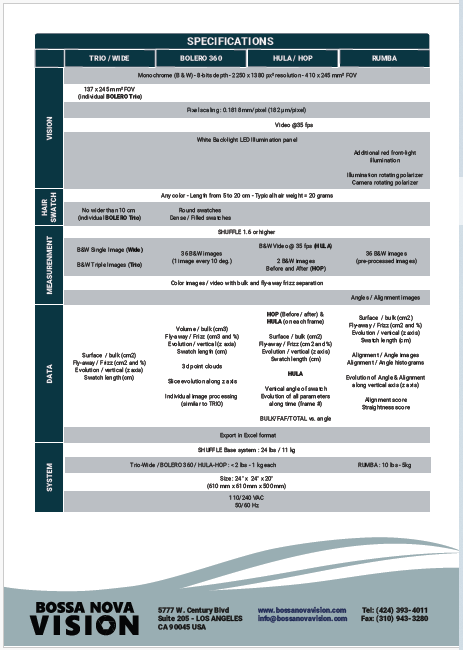

GENERAL SPECIFICATIONS
Camera
Monochrome 8 bits
Resolution
2,250 x 1,380 pixels
Field of View
410 x 245 mm²
Video
35 fps
Illumination
LED Illumination Panel
Software
SHUFFLE 1.0 or higher
Windows 10
Measurement Time
< 1 min
Calibration
Factory calibrated
Size
23" x23" x 20 "
(580mm x 580mm x 500mm)
Power
110/200 VAC
50/60 Hz
HAIR SAMPLE SPECIFICATIONS
Color
Any color
Length
Length from 5 to 25 cm
Weight
Typical hair weight = 20 grams
DATA


Data saved
Trio / Wide - Single image
BOLERO 360 - 36 images
HULA - 15 seconds video
HOP - 2 images (before / after)

Raw and Processed Images / video

Processed numerical data
Volume of swatch
% of Fly-Away/Frizz
Angle / Phase / Damping


Data export
Black/White Raw Images
Processed Images
3D XYZ Point Cloud
Raw and processed videos

Excel Export of numerical data
