SAMBA HAIR

Hair shine measurements for claims and research

SAMBA Hair for hair shine cosmetic testing

Features

shine gloss color test claims research hair care polarization luster Samba Hair System Diffuse Shine Chroma logo-4

CLAIMS COMPLIANT

Compatible with claims for hair shine improvement products

shine gloss color test claims research hair care polarization luster Samba Hair System Diffuse Shine Chroma logo-3

EASY TO USE

Turn-key and low maintenance cosmetic testing system with no technical input required

shine gloss color test claims research hair care polarization luster Samba Hair System Diffuse Shine Chroma logo-2 combing cylinder

COMBING CYLINDER

For a better repeatability and more accurate measurements

shine gloss color test claims research hair care polarization luster Samba Hair System Diffuse Shine Chroma logo-1

OPEN DATA

All parameters measured are available using export feature

Overview

SAMBA Hair is a unique device to analyze hair shine (also called hair luster or hair gloss). It is extensively used in the cosmetic industry to substantiate claims and evaluate products efficacy – such as shampoo, conditioners, shine sprays, etc. – on any straight hair.

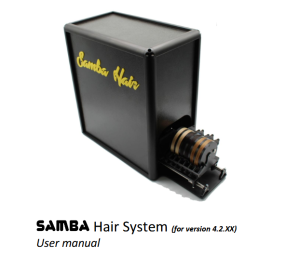

SAMBA Hair comes as a turn-key system. It includes an imaging sensor head, an in-vitro enclosure with a sliding cylinder, as well as a computer with dedicated and user-friendly software. The hair samples are positioned on a cylindrical mount that slides inside the instrument.

The system also allows in-vivo measurements using a rotating arm positioned on the side of the imaging sensor head.

shine gloss color test claims research hair care polarization luster Samba Hair System Diffuse Shine Chroma system purpose

A complete analysis of the gloss characteristics of your hair tress is delivered in seconds. It includes :

  • Specular and Diffused images obtained with our polarization-imaging sensor
  • Angular profiles of Specular, Diffused and Chroma
  • Numerical data : Luster, light intensity, shine bandwidth, etc.

All those data can be quickly compared and exported for reports, presentations or post processing.

Principle

SAMBA Hair system acquires successively 2 images of parallel and crossed polarization state. This allows the decomposition of the image seen by a conventional camera or the eye into 2 images: specular and diffused.

shine gloss color test claims research hair care polarization luster Samba Hair System Diffuse Shine Chroma explanation
shine gloss color test claims research hair care polarization luster Samba Hair System Diffuse Shine Chroma

The specular image is formed only by the light reflected by the hair surfaces (front-side reflection and back-side reflection). This image contains the shine and chroma information.

The diffused image is formed only by the scattered light coming from the inside of the hair. This image contains the color information.

Assuming that the surface reflection – the shine – does not contain color information, virtual profiles of shine and chroma are calculated from the specular image using a color based algorithm.  The shine profile is black & white, while the chroma profile contains all color information. The light scattered by hair fiber can then be decomposed into 3 components: Shine, Chroma and Diffuse.


Normal
← Diffuse      Specular →

Choose and slide to see
what specular and diffuse looks like
🡗

Hair Color

Those images gives us measurements of several parameters including light intensity, angular profiles, color distribution. Several formulas for hair luster including Reich-Robbins, TRI coefficient and our own BNT coefficient are directly used to characterize the luster of your hair sample.

Specifications

HAIR SAMPLE SPECIFICATIONS
Hair Type
Any color - Straight hair that can be combed
Hair Tress Dimension
1" wide , 7" (178mm) long
DATA

Data Format
Images (RGB 32 PNG color images)
Angular color profiles
Numerical data (lusters, etc.)
Measurement uncertainty
1% over 24h
Data repeatability
(repositioning and combing)
<5%
GENERAL SPECIFICATIONS
Sensor
SAMBA polarization camera
12bit color analysis
Illumination
White LED bar
Sample holder
3-groove cylinder removable tray
Computer
Acer Laptop or All-in-one
Windows 10 Home Edition (Pro on demand)
Microsoft Excel 2016 license
Weight / dimension
14”W x 22”H x 14”D - 30lbs
(355mm x 560mm x 360mm - 13.5 kg)
Electrical requirements
110/220 V, 50/60 Hz

Resources

Documentation

SAMBA Hair - Sample Report

This report has been graciously shared with us
by our partner SP Equation (France)

Scientific publications *

*related to the use of a SAMBA Hair system

Lefaudeux N, Lechocinski N, Clemenceau P, Breugnot S. J Cosmet Sci. 2009 Mar-Apr;60(2):153-69.

Gao T, Pereira A, Zhu S.
J Cosmet Sci. 2009 Mar-Apr;60(2) 187-197. PMID: 19450419.

A. Jonckhèere, J.F. Tranchant, LVMH Recherche Parfums et Cosmétiques MATERIALS & SENSATIONS 2008, PAU (FRANCE), OCT. 22–24 1

Timothy Gao, Sam Zhu, Farahdia Edouard, Marni Dexter, and Jung-Mei Tien
Croda Inc., 300-A, Columbus Circle, Edison, NJ, 08837, USA
IFSCC Magazine 4 – 2014

TIMOTHY GAO, CHARLES MOSES, PETER LANDA, KEVIN GALLAGHER Croda Inc., 300-A, Columbus Circle, Edison, NJ, 08837, USA Monographic Supplement series: COLOUR COSMETICS Household and Personal Care today – n. 1/2012

Galliano A (1), Ye C (2), Su F (2), Wang C (2), Wang Y (2), Liu C (2), Wagle A (3), Guerin M (1), Flament F (1), Steel A (2)

  1. L’Oréal Research and Innovation, Centre Charles Zviak, Saint-Ouen, France.
  2. L’OREAL (China) R&D Center Pudong, Shanghai, China.
  3. L’OREAL (India) R&D Center Maharashtra, Mumbai, India.

Int J Cosmet Sci. 2017 Dec;39(6):610-616. doi:10.1111/ics.12416. Epub 2017 Sep 26.

C.J. Luptona (1), A. McCollb (2)

  1. Texas AgriLife Research and Extension Center, 7887 US Highway 87 North, San Angelo, TX 76901, USA
  2. Yocom-McColl Testing Labs, 540 West Elk Place, Denver, CO 80216, USA

Small Ruminant Research 99 (2011) 178– 186

Xiaosong Liu (1,3), Fumei Wang (1,2) and Ian R Hardin (3)

  1. Department of Textiles, Merchandising, and Interiors, University of Georgia, Athens, USA
  2. Key Lab of Textile Science and Technology Ministry of Education, Shanghai, China
  3. College of Textiles, Donghua University, Shanghai, China

Liu et al., J Textile Sci Eng 2013, 4:1, http://dx.doi.org/10.4172/2165-8064.1000145
